NexusDB V3 Manual

Using the Data Grid

The data grid displays all fields in table or query result set, with default formatting. For tables and live queries the data is directly editable, unless the main menu Live Datasets option is off (it is off by default).

Here are the main features of the grid:

Sorting Data

Click one of the column headers to sort all your data by this column.

Be aware that this can take a long time on large tables, depending if you a suitable index is available or not.

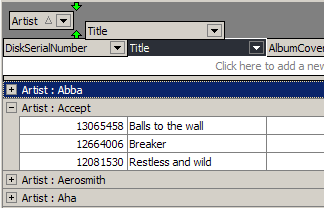

Grouping Data

Drag & drop a column header to the dark gray are just above them to group by this field. You can also group by more than one field by dropping different fields.

Again this can be time consuming for large tables.

Rearrange Columns

The columns of the grid can be rearranged by dragging the header of a column along the header row.

Resize Column Widths

You can resize the width of each individual column by dragging the separator line at it's end between columns.
